Creating Efficient Workflows in R

Parks Canada; Ecological Integrity Monitoring Program

Andy Teucher

Introductions


Me: Andy Teucher

andyteucher.ca

ateucher

andyteucher

andy-teucher

Yourselves

  • Name
  • Where you are
  • What you work on
  • Hardest thing about R

Resources


Workshop website: https://andyteucher.ca/pc-intermediate-r/


WTF Book: https://rstats.wtf/

Project-oriented workflows

  • Concept of a project
  • Project structure
  • Embrace the blank slate
  • Naming things
  • File organization

Personal R administration

  • Where do packages live?
  • Installing and updating packages
  • R Startup
  • .Rprofile and .Renviron files

Efficient use of your IDE

  • Customizing your IDE
  • Keyboard shortcuts
  • Command palette
  • Tab completion
  • Autoformatting code
  • Getting help: Reprexes

Getting started with Positron

https://positron.posit.co/

  • See “Migrating from RStudio” section

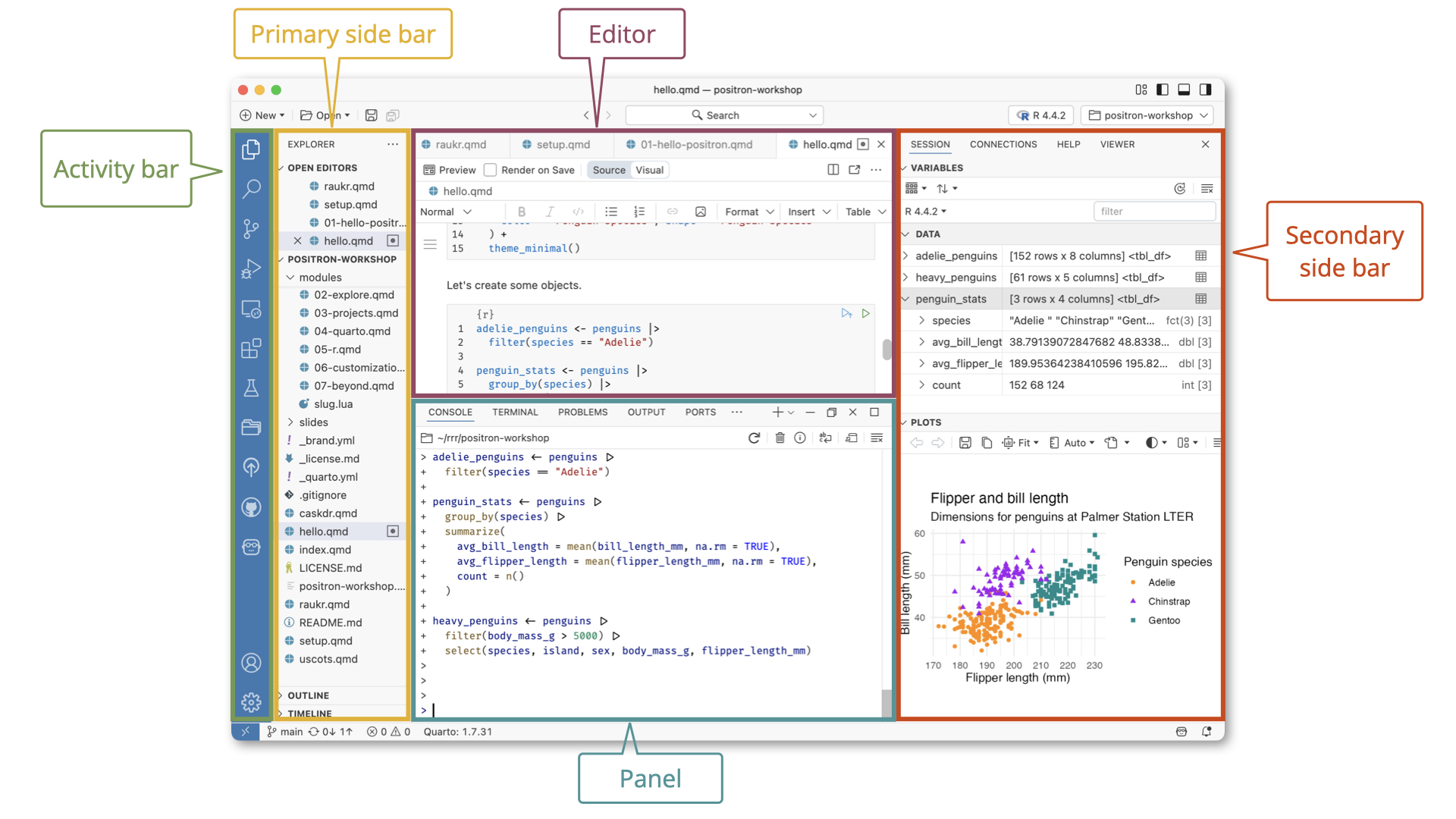

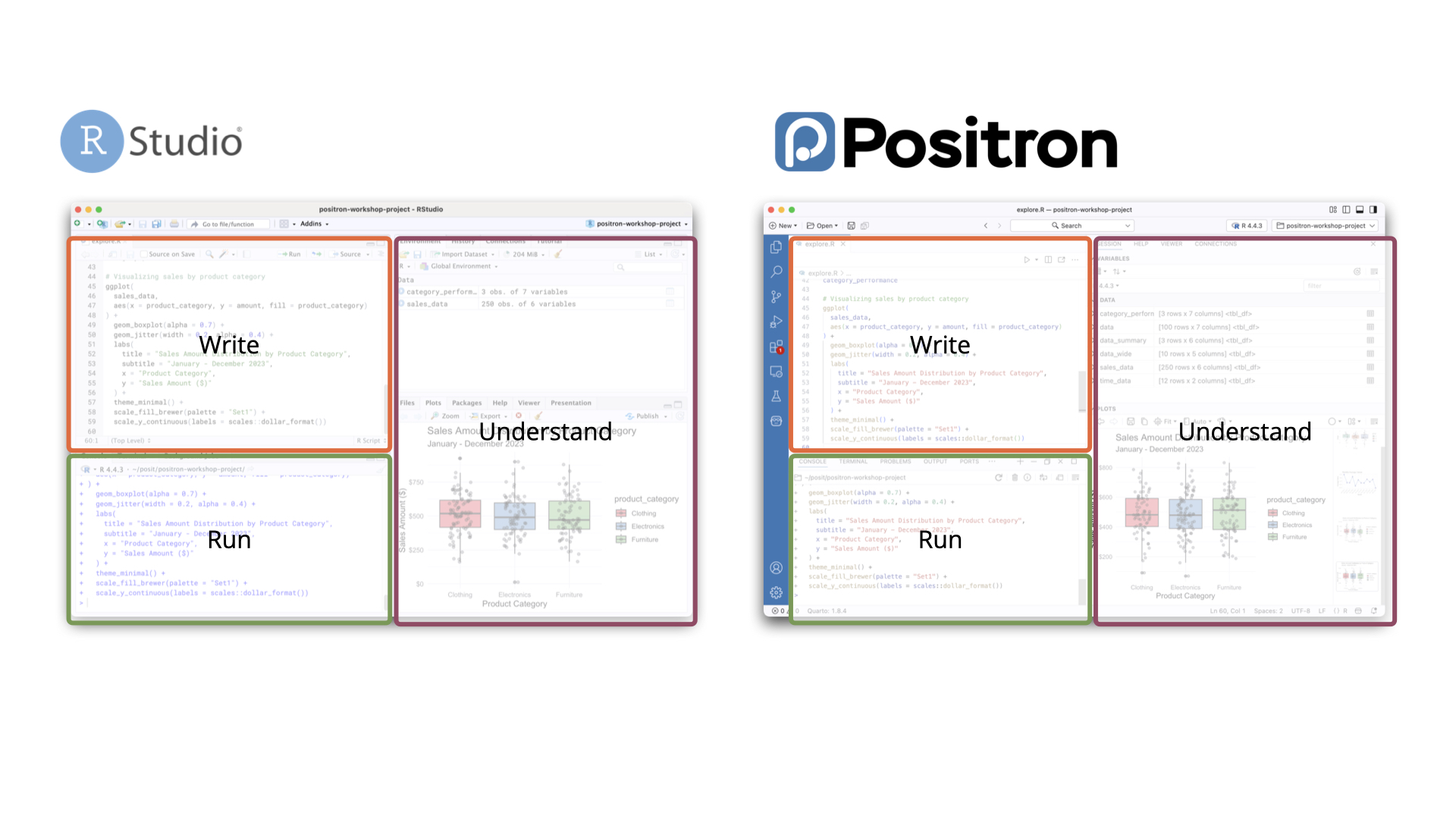

Layout

https://github.com/posit-dev/positron-website/pull/116/

Layout

https://github.com/posit-dev/positron-website/pull/116/

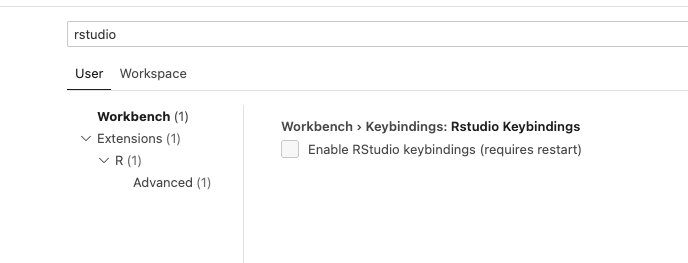

Keyboard shortcuts

Enable Rstudio keyboard shortcuts via:

Settings > Workbench > Keybindings: Rstudio Keybindings

Command palette


Access all the things


Ctrl + Shift + P

Extensions


Pre-installed

  • Quarto
  • Air

Other extensions

  • Rainbow csv
  • vscode-pdf
  • Themes

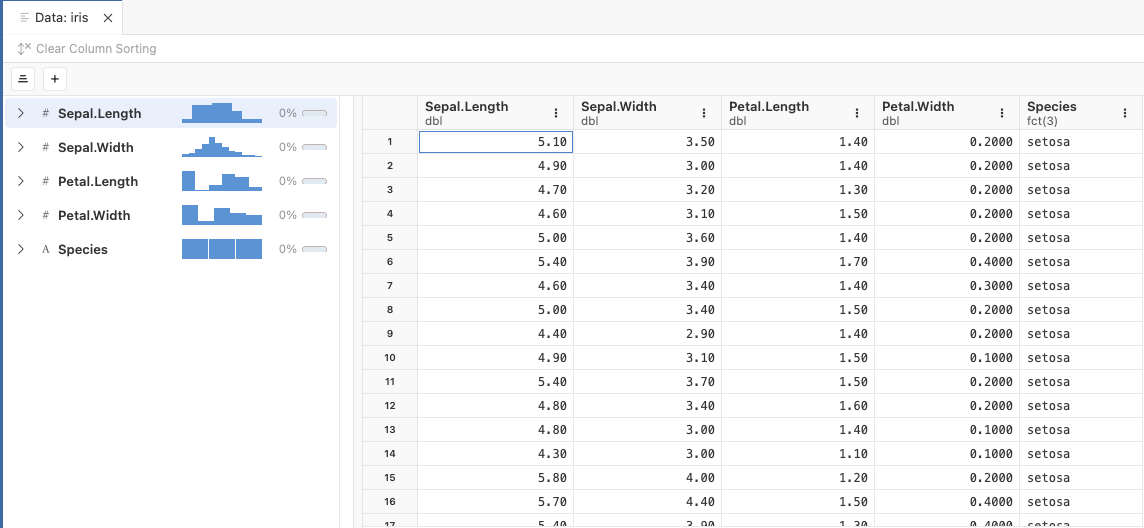

Data Explorer

Project-oriented workflows

Often we are (or think we are) only doing our data work on our own

When we want to facilitate collaboration or focus on reproducibility, we need new strategies

What they Forgot to Teach You About R - Much of this material is distilled from this book.

Jenny Bryan is a hero in the R world.

An early adopter teaching R/GitHub as a prof at UBC, now at Posit

Learning objectives

  1. Establish the concept of the project as the basic organizational unit of work.

  2. Apply best practices in and leverage benefits of using a project-oriented workflow.

  • Creating robust file paths that travel well in time and space.

  • Constructing human and machine readable file names that sort nicely.

  • Differentiating workflow elements, analysis inputs, and analysis outputs in project structure to create navigable programming interfaces.

  • Restarting R frequently, with a blank slate.

Prerequisites

install.packages(c("tidyverse", "devtools"))

devtools::install_github("r-lib/usethis")

Be organized as you go, not “tomorrow”

Don’t fret over past mistakes.

Raise the bar for new work.

Prerequisite: Save code in scripts

Saving code is an absolute requirement for reproducibility. (Future you, future us)

  • Save commands as “scripts” (.R) or “notebooks” (.Rmd).

  • It doesn’t have to be polished.

  • Just save it!

  • Everything that really matters should be achieved through code that you save

  • Contrast: Series of unrecorded mouse clicks

The process is important, the product is just an outcome

  • Outputs should be treated as disposable
  • Scripts are the source of truth

Adopt a project-oriented workflow


Why

  • work on more than 1 thing at a time

  • collaborate, communicate, distribute

  • start and stop safely

How

  • dedicated directory

  • RStudio Project or Positron Workspace

  • Git repo, probably syncing to a remote

Project-oriented workflows

If the top of your script is


setwd("C:/Users/andy/path/that/only/I/have")
rm(list = ls())


There is another path.


Project-oriented workflow designs this away. 🙌

Project-oriented workflows

Organize your work into projects

One folder per project.

  • Report? R package? Chapter? Website? Whatever.

  • Can be the same unit as a GitHub Repo.

  • If using RStudio, it’s Project (capital P)

  • If using Positron, it’s Workspace

  • Each Project gets its own R instance

  • R starts at the project root working directory: all paths are relative to the project’s folder.

Project-oriented workflows

Organize your work into projects

my-project/
├── 01_read-data.R
├── 02_clean-data.R
├── 03_analysis.R
├── 04_output.R
├── R
├── README.md
├── data
│   ├── derived_data
│   └── raw_data
├── outputs
└── paper
    ├── paper.qmd
    └── references.bib

Project-oriented workflows

What does it mean to be an RStudio Project?

Open Project = dedicated instance of RStudio

  • dedicated R process
  • file browser pointed at Project directory
  • working directory set to Project directory


RStudio leaves notes to itself in foo.Rproj

What does it mean to be a Positron Project Workspace?

Open Project = dedicated instance of Positron

  • dedicated R process
  • file browser pointed at Project directory
  • working directory set to Project directory


Often just a project folder that’s been opened in its own window via Open Folder or similar

  • .git/ directory
  • .Rproj file
  • .vscode/settings.json file
  • _quarto.yml file
  • DESCRIPTION file
  • renv.lock file
  • .here file

Practice “safe paths”

The chance of setwd() having the desired effect – making the file paths work – for anyone besides its author is ~0%.

library(ggplot2)
setwd("/Users/andy/cuddly_broccoli/verbose/foofy/data")
df <- read.csv(“raw_foofy_data.csv”)
p <- ggplot(df, aes(x, y)) + geom_point()
ggsave("/Users/andy/cuddly_broccoi/ambiguous/fig.png")


It’s also unlikely to work for the author one or two years or computers from now.

Hard-wired, absolute paths, especially when sprinkled throughout the code, make a project brittle. Such code does not travel well across time or space.

Practice “safe paths”


relative to a stable base, not absolute paths.


use file system functions, not paste(), strsplit(), etc.

Practice “safe paths”

Instead of:

setwd("C:/Users/andy/path/that/only/I/have")
my_data <- read.csv("data/my_data.csv")

Or:

my_data <- read.csv("C:/Users/andy/path/that/only/I/have/data/my_data.csv")

Practice “safe paths”

Set your work up as an RStudio or Positron Project/Workspace and use relative paths:

my_data <- read.csv("data/my_data.csv")

Or:

my_data <- read.csv(file.path("data", "my_data.csv"))

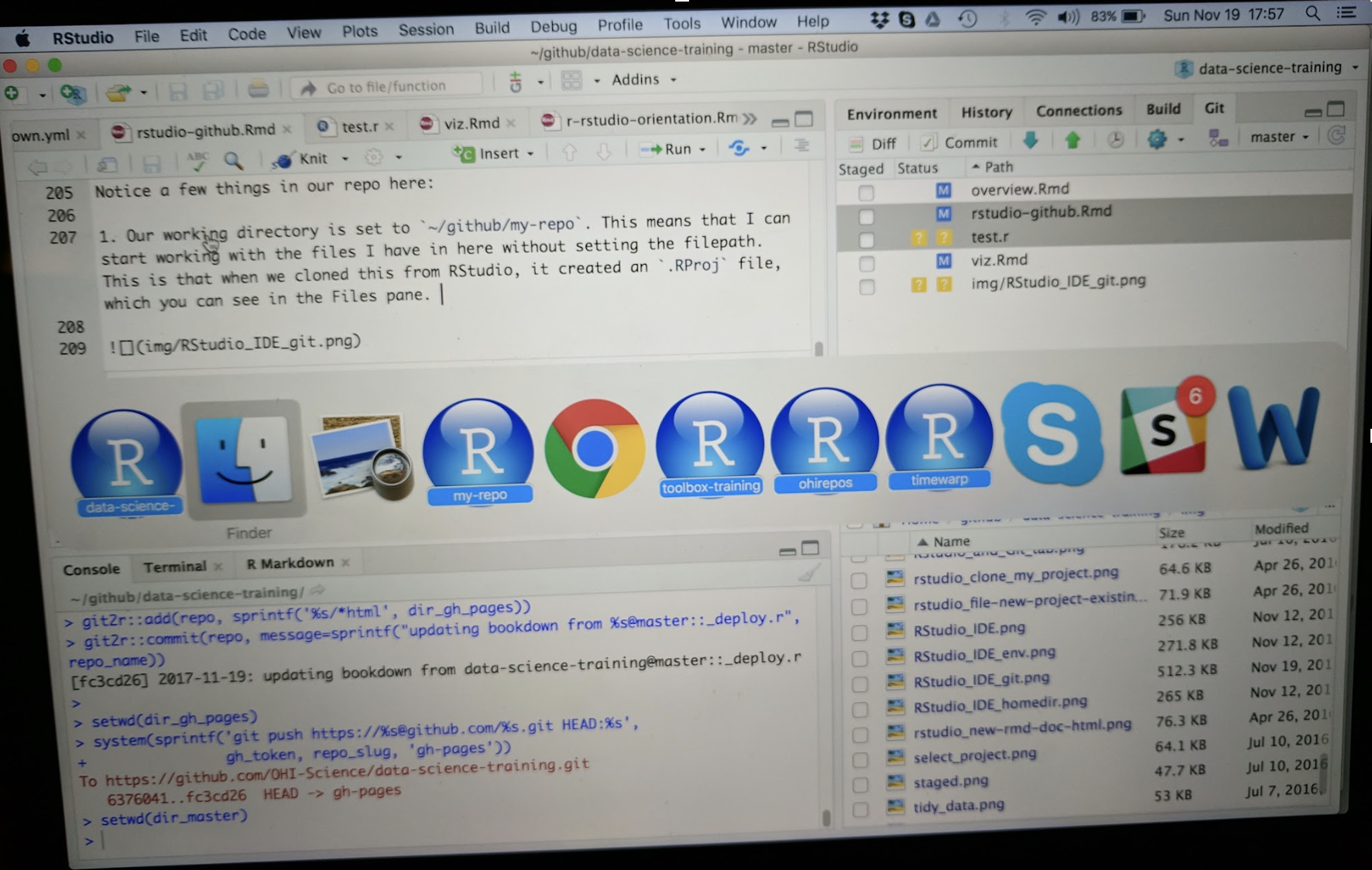

Work on multiple projects at once

Because each project uses an isolated R process

Which persist after rm(list = ls())?

Option Persists?
A. library(dplyr)
B. summary <- head
C. options(stringsAsFactors = FALSE)
D. Sys.setenv(LANGUAGE = "fr")
E. x <- 1:5
F. attach(iris)
02:00

Which persist after rm(list = ls())?

Option Persists?
A. library(dplyr)
B. summary <- head
C. options(stringsAsFactors = FALSE)
D. Sys.setenv(LANGUAGE = "fr")
E. x <- 1:5
F. attach(iris)

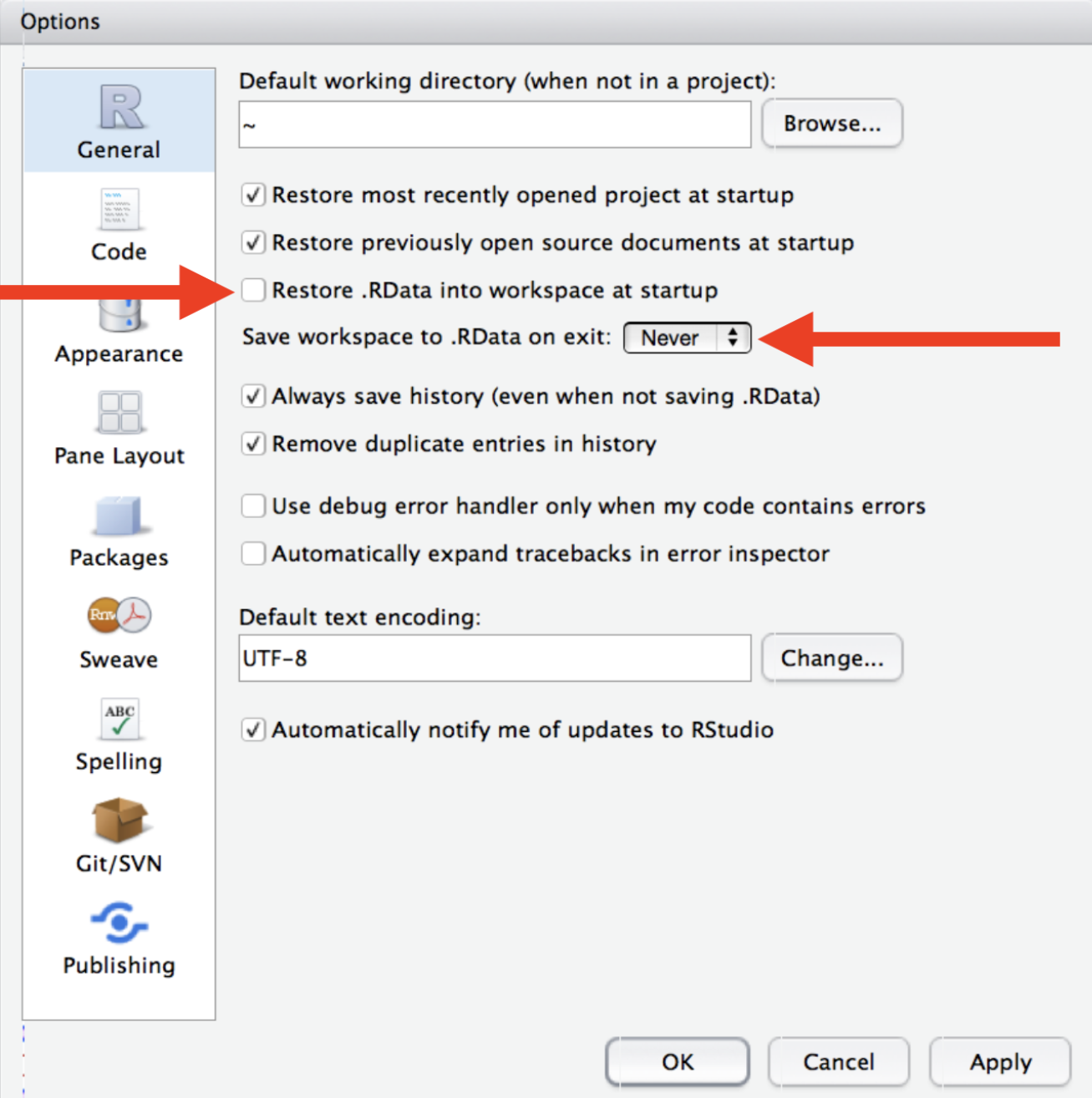

Start R with a blank slate

  • Save code for reproducibility.
  • When you quit: do not save the workspace to an .Rdata file.
  • When you start: do not reload the workspace from an .Rdata file.
  • In RStudio, set this via Tools > Global Options.
  • Or use usethis::use_blank_slate()

This is the default (and not customizable) in Positron

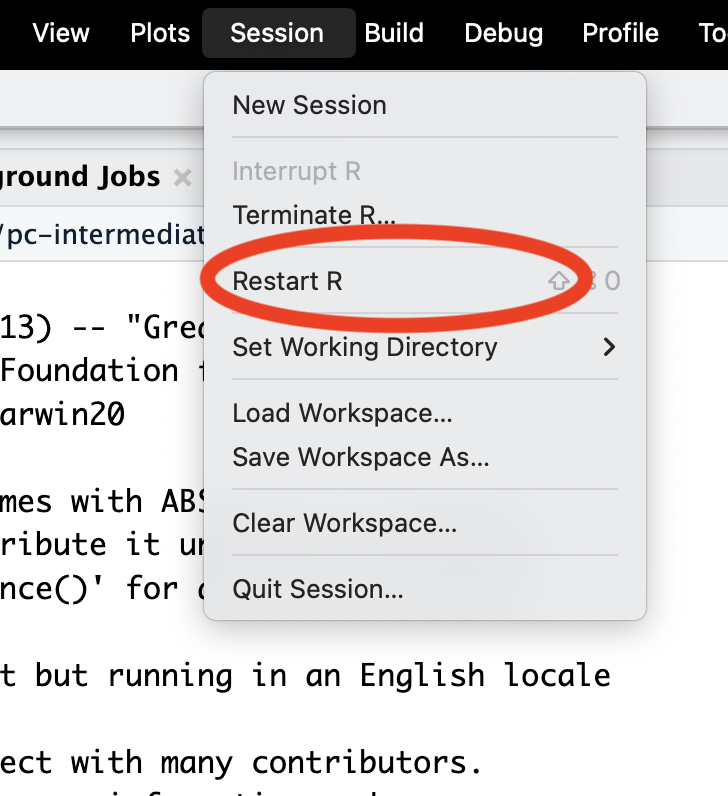

Restart R often


Session -> Restart R

Windows

  • Ctrl + Shift + F10

Mac

  • Cmd + Shift + 0

Project initiation: RStudio Project

  1. New folder + make it an RStudio Project

  • usethis::create_project("~/i_am_new")

  • File -> New Project -> New Directory -> New Project

  1. Make existing folder into an RStudio Project

  • usethis::create_project("~/i_exist")

  • File -> New Project -> Existing Directory

Project initiation: Positron Workspace

  1. New folder + make it a workspace

  • usethis::create_project("~/i_am_new", rstudio = FALSE)

  • File -> New Folder From Template

  1. Open an existing directory as a workspace

  • usethis::create_project("~/i_exist", rstudio = FALSE)

  • File -> New Project -> Existing Directory

Note: if you don’t specify rstudio = FALSE, it will create an RStudio .Rproj file. This does no harm.

Try either option now with a folder containing (or that will contain) Bivalve Data 2014-2022_ICE.csv.

Naming things


machine readable


human readable


sort nicely

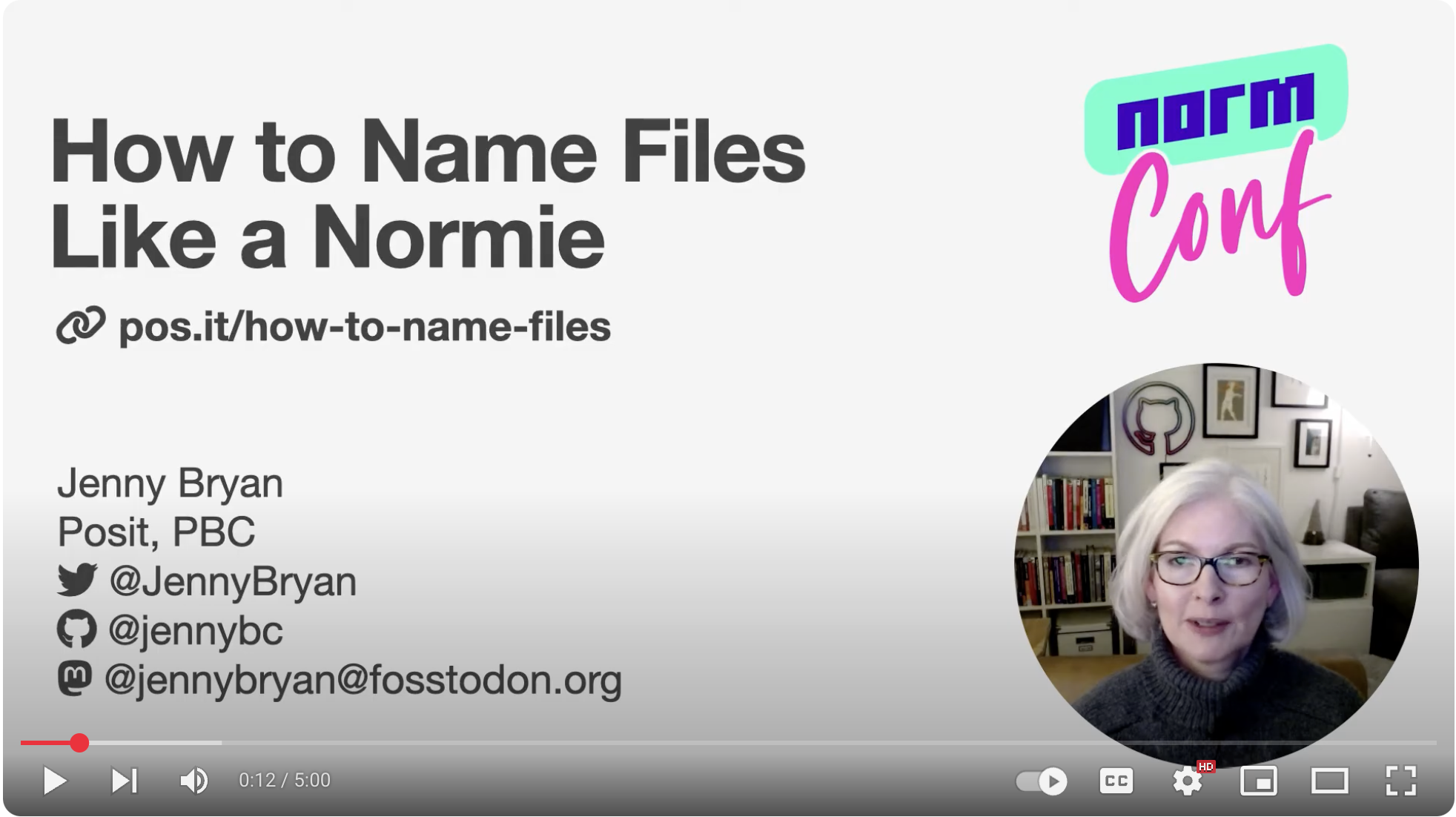

Jenny Bryan “Naming things” video

NormConf · Dec 4, 2022:

https://www.youtube.com/watch?v=ES1LTlnpLMk

Naming things

What features differentiate 😔 vs 😍?


😔



😍

myabstract.docx

Joe’s Filenames Use Spaces and Punctuation.xlsx

figure 1.png

homework.R

JW7d^(2sl@deletethisandyourcareerisoverWx2*.txt


2018-01_teucher-abstract-conference.docx

joes-filenames-are-getting-better.xlsx


2024-07-25_ecol-455_assignment-5.R

1986-01-28_raw-data-from-challenger-o-rings.txt

01:00

Names machines like

  1. don’t leave white space
  1. use letters, numbers, hyphens and underscores… that’s it
    (characters like ^.*?+|$ can have a special meaning)
  1. be consistent with case
    (some operating systems treat a and A the same, some differently).
  1. use separator characters wisely

    use underscore _ to separate different chunks

    use hyphen - for words in the same chunk


This creates names that are regular expression and globbing friendly, and easy to compute on! 🎉

Adapted from
https://djnavarro.net/slides-project-structure/#1.

Names humans like


name contains info on content

name anticipates context

concept of a slug 🐌 from user-friendly URLs

  • 1986-01-28_raw-data-from-challenger-o-rings.txt

  • concise, meaningful description

  • usually appended to the end

Names that sort nicely


put something numeric in there

left pad with zeros for constant width, nice sorting, 01

use the ISO 8601 standard for dates, YYYY-MM-DD

order = chronological or … consider common sense

ISO 8601

YYYY-MM-DD

ISO 8601

https://www.iso.org/iso-8601-date-and-time-format.html

https://twitter.com/JennyBryan/status/816143967695687684

👍 file names

library(fs)
library(dplyr)

ft <- tibble(files = dir_ls("_examples/data/", glob = "*.csv"))


Intuitive sorting.

ft
# A tibble: 4 × 1
  files
  <fs::path>
1 _examples/data/2024-07-16_site-2_plot-data.csv
2 _examples/data/2024-07-25_site-2_survey-data.csv
3 _examples/data/2024-08-12_site-1_plot-data.csv
4 _examples/data/2024-08-18_site-1_survey-data.csv
arrange(ft, desc(files))
# A tibble: 4 × 1
  files
  <fs::path>
1 _examples/data/2024-08-18_site-1_survey-data.csv
2 _examples/data/2024-08-12_site-1_plot-data.csv
3 _examples/data/2024-07-25_site-2_survey-data.csv
4 _examples/data/2024-07-16_site-2_plot-data.csv

👍 file names

library(stringr)

filter(ft, str_detect(files, pattern = "plot-data"))
# A tibble: 2 × 1
  files
  <fs::path>
1 _examples/data/2024-07-16_site-2_plot-data.csv
2 _examples/data/2024-08-12_site-1_plot-data.csv

Easy to filter in R (or the shell or whatever)

👍 file names

library(tidyr)

ft |>
  mutate(files = path_ext_remove(files)) |>
  separate(files, into = c("date", "site", "data_type"), sep = "_")
# A tibble: 4 × 3
  date  site                     data_type
  <chr> <chr>                    <chr>
1 ""    examples/data/2024-07-16 site-2
2 ""    examples/data/2024-07-25 site-2
3 ""    examples/data/2024-08-12 site-1
4 ""    examples/data/2024-08-18 site-1

Intentional delimiters means meta-data is easily recovered.

_ delimits fields; - delimits words

Rename the file Bivalve Data 2014-2022_ICE.csv to something that is machine readable, human readable, and sorts nicely.

Read the file in to R using a relateive path

Names matter


machine readable, human readable, and sort nicely


easy to implement NOW


payoffs accumulate as your skills evolve and
projects get more complex

Project structure

my-project/
├── 01_read-data.R
├── 02_clean-data.R
├── 03_analysis.R
├── 04_output.R
├── R
├── README.md
├── data
│   ├── derived_data
│   └── raw_data
├── outputs
└── paper
    ├── paper.qmd
    └── references.bib

Personal R administration

Your R installation

R packages

R packages

  • the natural unit for distributing R code

base R

  • 14 base + 15 recommended packages

  • ships with all binary distributions of R

Additional packages

CRAN, ~20k packages

# install from CRAN
install.packages("devtools")
# attach
library(devtools)

GitHub ~∞ packages

# install from GitHub
remotes::install_github("r-lib/devtools")
# attach
library(devtools)

development versions, or packages not on CRAN

R Libraries - where do packages live?

  • A library is a directory containing installed packages
  • You have at least one library on your computer
  • Common (and recommended) to have two libraries:
    • A system library with base (14) and recommended (15) packages; installed with R.
    • A user library with user-installed packages
  • We use library(pkg) function to attach a package
  • 7 base packages are always attached (base, methods, utils, stats, grDevices, datasets, graphics)

Where do packages live locally?


The system library (base/recommended packages).

.Library


All libraries for the current session

.libPaths()


All installed packages

installed.packages()

Your turn

  1. What libraries are in use in your current R session?
  2. Using installed.packages(), what are the base and recommended packages?

Installing and updating packages

R Startup

R Startup

  1. .Rprofile - contains R code to be run at the start of each session.
  2. .Renviron - contains environment variables to be set in R sessions.

what to put in .Rprofile

  • set a default CRAN mirror
  • custom startup message

what not to put in .Rprofile

If it matters for code you share, it should not be in .Rprofile

why shouldn’t these go in .Rprofile?

  • library(tidyverse)
  • f <- dplyr::filter
  • theme_set(theme_bw())

Why might these be safe to put in .Rprofile?


library(usethis)
library(devtools)

.Rprofile

usethis::edit_r_profile()

.Renviron

  • Set environment variables for R sessions
  • Often sensitive information that you don’t want to share

Examples

  • API Keys (Eg GitHub, ChatGPT etc)
  • Database username and password
  • Some R options

.Renviron

usethis::edit_r_environ()
VAR_NAME=value
GOOGLE_API_KEY=your_api_key_here

.Renviron

Access environment variables in R with Sys.getenv("VAR_NAME")

Sys.getenv("GOOGLE_API_KEY")
#> [1] "your_api_key_here"

Your turn

  • Create an environment variable in .Renviron called MY_NAME with your name as the value.
  • Create a custom startup message in .Rprofile that gives you a personalized message when you start R.

Efficient use of your IDE

Customizing your IDE


  • Pane layout
  • Themes
  • Fonts
  • Positron extensions

Keyboard shortcuts

If in doubt, use the command palette: Ctrl + Shift + P

Code Editing

  • Ctrl + Shift + C - Comment/uncomment lines
  • Tab - Indent selection
  • Shift + Tab - Unindent selection
  • Alt + Up/Down - Move line(s) up/down
  • Alt + Shift + Up/Down - Duplicate line(s) ???
  • Ctrl + X - Cut entire line (when no selection)

Magic of Multiple Cursors

  • Ctrl + Alt + Up/Down - Add cursor above/below
  • Ctrl + D - Add next occurrence of selected text (custom)

R-Specific

  • Tab - Auto-complete
  • F1 - Show help for function under cursor
  • Ctrl + Shift + F10 - Restart R session
  • Ctrl + Shift + M - Insert pipe operator (%>% or |>)
  • Alt + - - Insert assignment operator (<-)

.Last.value

Shows last evaluated value in console

RStudio

  • Tools > Global Options > General > Advanced > Show .Last.value in environment listing

Positron

Controlled by an option:

usethis::edit_r_profile()
options(positron.show_last_value = TRUE)

Automatic code formatting

Air: https://posit-dev.github.io/air/

  • In charge of the layout of your R code.
  • Formatters do not change the meaning of code
  • Ensure that whitespace, newlines, and other punctuation conform to a set of rules and standards
usethis::use_air()

Reprexes

Homework

Start using project-oriented workflows in your work


  • Use RStudio or Positron Projects/Workspaces
  • don’t use setwd()
  • use relative paths
  • Use a blank slate - restart R often

Try to name files well


  • machine readable
  • human readable
  • sorts nicely (including ISO 8601 dates)

Use Positron or RStudio more efficiently


  • use keyboard shortcuts
  • use the command palette
  • use Air
